Walk-through metal detectorGarrett PD 6500i - IP65
The weatherproof version of the proven standard walk-through detector, worldwide first choice in airports and courts and listed as an Approved Product for Homeland Security (DHS SAFETY Act). Microprocessor-based pulse-induction detector with Garrett Dual Optics and Digital Signal Processor, 33 pinpoint zones and 20 programs. Protection rating IP65 makes it dust-tight and protected against water jets, for apron and outdoor screening in any weather.
Price on request
Project prices depend on equipment, quantity and scope of delivery. We prepare an individual quote for you.
Specifications at a glance.
The essentials at a glance.
PD 6500i IP65: the weatherproof walk-through detector
The PD 6500i IP65 works on the pulse-induction method with Garrett Dual Optics and a Digital Signal Processor. Multi-zone pinpointing captures objects in 33 separate zones from head to toe and shows the height and approximate position. 20 programs cover airport, court, correctional facility and stadium. Protection rating IP65 means dust-tight and protected against water jets. That keeps the device usable outdoors as well.
The PD 6500i IP65 keeps all settings, even when disconnected from the mains, and needs no calibration after switching on and off. A memory battery is not required. At eye level, internationally understood traffic-light symbols show a red stop hand or a green walk symbol and thus increase the throughput rate.
The PD 6500i IP65 works with Advanced Broadband Technology. It analyzes the object, detects ferrous and non-ferrous weapons and distinguishes precious metals. With multi-zone pinpointing it is the only walk-through detector approved at US and European airports that shows the height and approximate position of the object.
DTI is the exclusive importer of Garrett. The manufacturer's walk-through detectors stand in US and international airports and were used at the Olympic Games.
With protection rating IP65 the detector also works reliably outdoors.

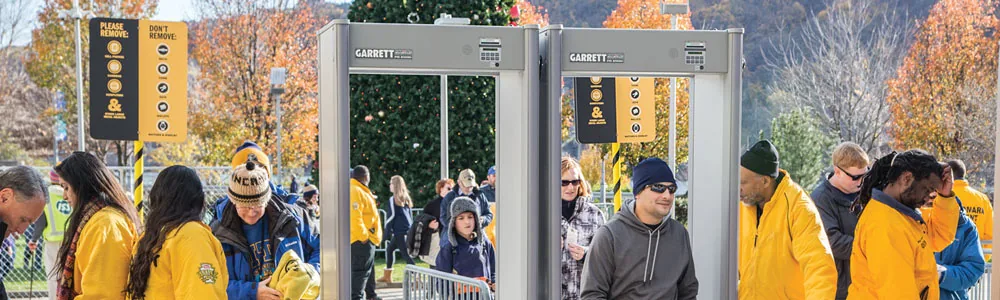

The weatherproof walk-through detector for people screening, outdoors as well.
Original documents.
Garrett PD 6500i - IP65 in detail.
Dust-tight and protected against water jets.
Protection rating IP65 per IEC 529 guards against dust and strong water jets from any angle. That lets the detector screen outdoor areas reliably too, from the stadium entrance to the factory gate.
Listed as an Approved Product for Homeland Security, with 33 pinpoint zones from head to toe.
Detects flat objects too.
The multidimensional coil array reliably picks up weapons, knives and knuckledusters, regardless of the installation site.
Network-ready via the iC module.
Through the iC module the detector connects to a laptop or PC by cable or wirelessly, including real-time monitoring and remote diagnostics.
Set up in about 30 minutes.
One person joins four device components with eight screws and three internal cables, outdoors as well.
Applications, options, scope of delivery.
- Court, district court, police, customs, military, clinic
- Correctional facility, prison
- Airports, railway station, port, cruise terminal, transport terminals
- Arena, stadium, event hall, trade fair, carnival celebration
- Public buildings, schools, museum, college, university
- Special events, club, conference, premiere, party
- Security companies
- Nuclear power plants
- Prevention
- +The optional castor set enables full mobility for quick deployment
- +Optional battery modules for continuous operation, operation without a power cable or other wiring
- +Optional floor fixing set: the PD 6500i can be mounted with the adhesive floor fixing set. This protects your valuable flooring and prevents the device from moving.
- PD6500i metal detector, IP65 weatherproof
- Power cable
- Security instructions DVD
- Manual in German and English
- Plastic container for small parts
- TSA (U.S. airports)
- ECAC (European airports)
- STAC (French airports)
- Aena (Spanish airports)
- CJIAC (Japanese airports)
- DfT (U.K. airports)
- CE, FCC, CSA, IEC (CB Certification), ICNIRP, IEEE
