AccessoryGarrett SmartScan
With the SmartScan accessory, Garrett walk-through detectors measure body temperature contactlessly and automatically, without interrupting the flow of people.
Price on request
Project prices depend on equipment, quantity and scope of delivery. We prepare an individual quote for you.
Specifications at a glance.
The essentials at a glance.
Fits this device.
SmartScan for body-temperature screenings, contactless and automated

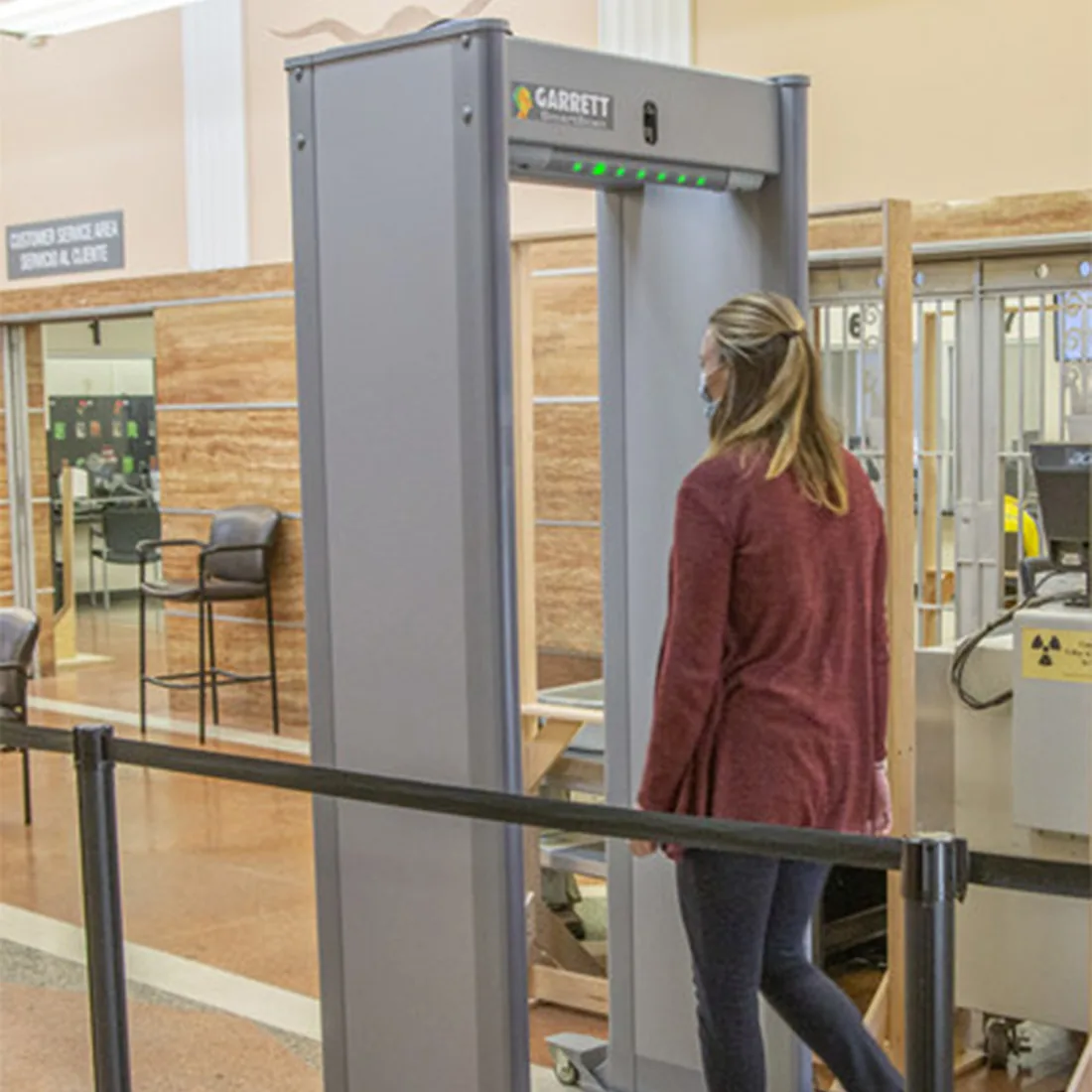

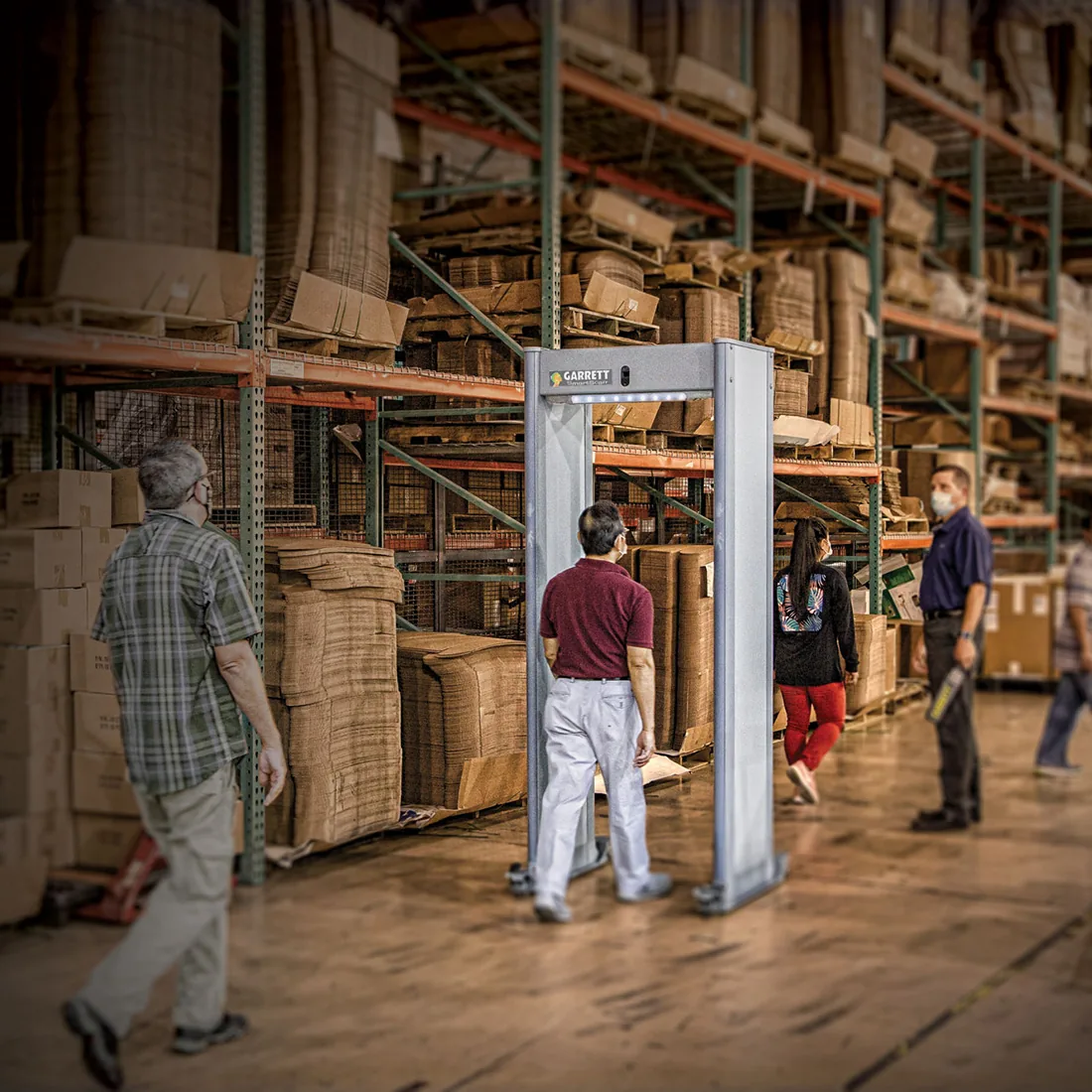

Screening accessory for Garrett walk-through detectors that measures body temperature contactlessly and automatically. It runs alongside the security check without interrupting the flow of people. Mounted as an add-on above the gate frame, it turns checkpoints in warehouses, at airports and at events into combined stations.
Garrett SmartScan in detail.
Temperature as you walk through.

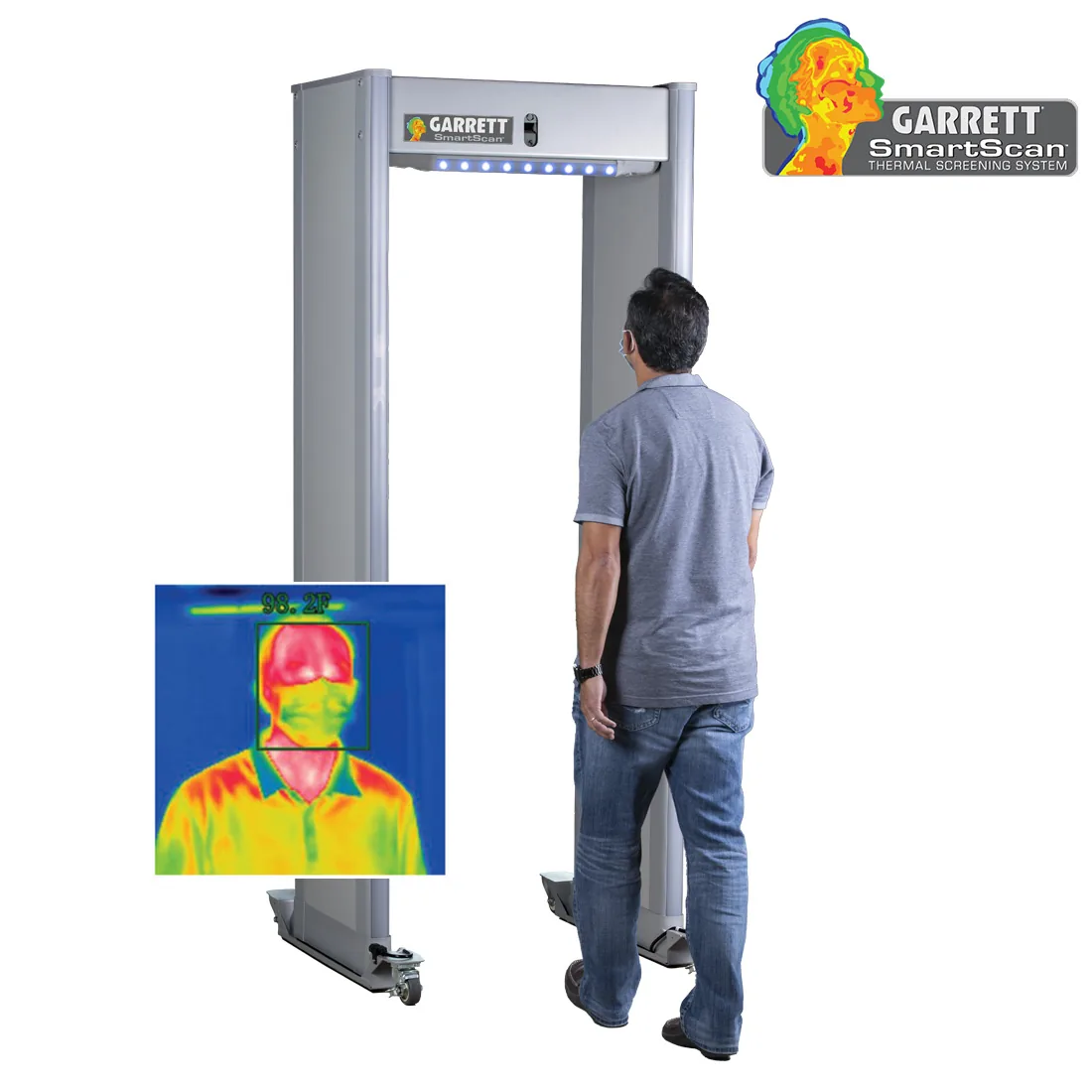

The SmartScan measures body temperature contactlessly as the person passes through the detector, and discreetly signals to move on or to stop. An extra screening step is eliminated, and queues do not form.
Add-on for the PD 6500i and MZ 6100.
The module sits above the archway and can be retrofitted to Garrett detectors already installed, in two sizes up to the ADA-compliant, barrier-free passage.
Separately or together.
Temperature capture and metal detection work independently of each other or together in one pass.
Up to four meters distance.
The measurement takes place up to four meters from the measuring point and calibrates itself based on the surroundings.
Eight hours off-grid.
The 14 Ah battery pack powers the module for around eight hours independently of the mains.
Scope of delivery.
- Add-on module SmartScan™ for your walk-through detector
