X-ray scannerVMI Spectrum 7560
The VMI Spectrum 7560 combines a large tunnel opening with a compact design, suitable for larger baggage volumes even where space is limited. The generator operates at 160 kV or 180 kV. In use in correctional facilities, at airports, in courts and at freight services.
Price on request
Project prices depend on equipment, quantity and scope of delivery. We prepare an individual quote for you.
Specifications at a glance.
The essentials at a glance.

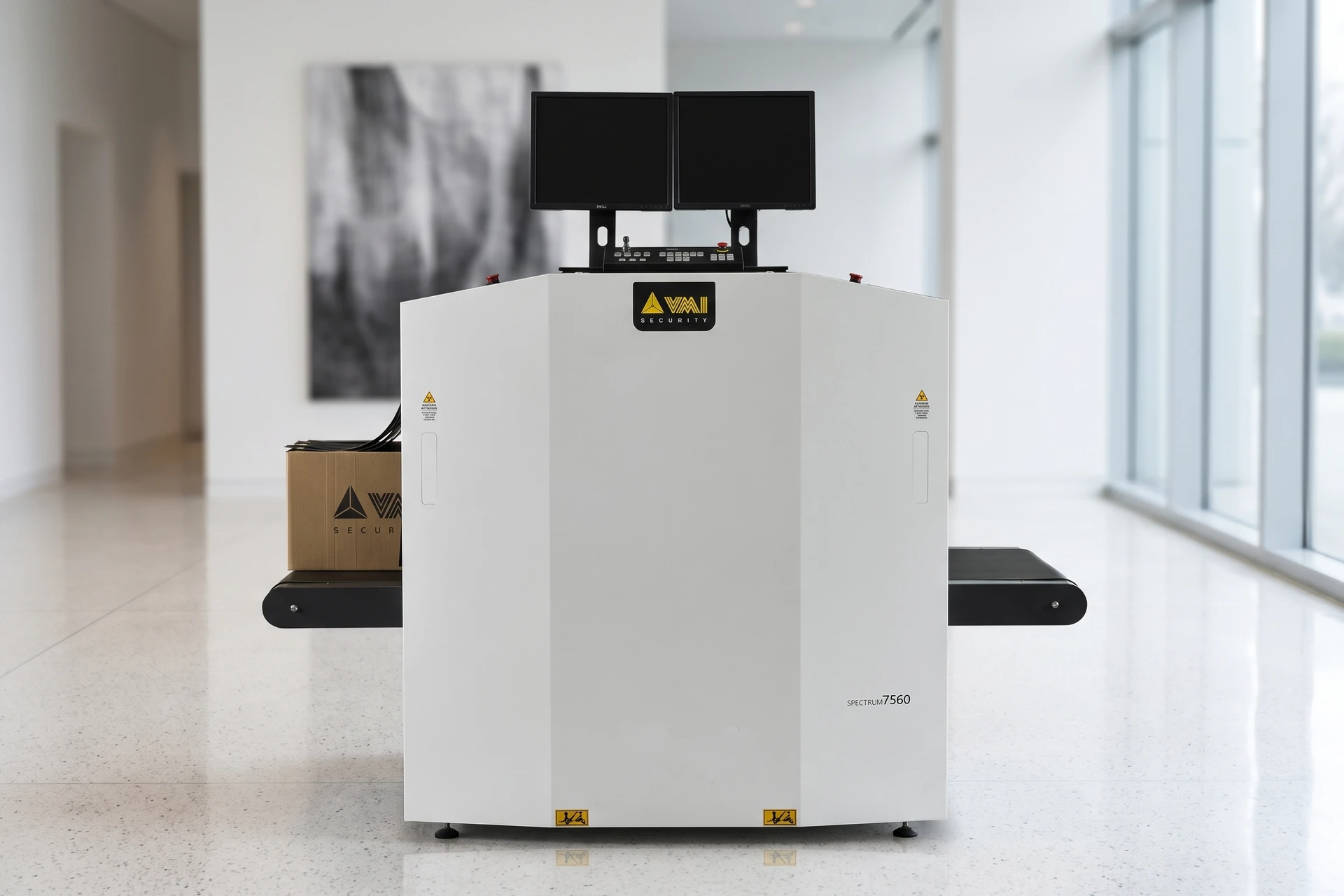

VMI Spectrum 7560: large tunnel opening in a compact design
The Spectrum 7560 offers a large tunnel in a compact form. With outer dimensions of 208,0 x 105,2 x 145,3 cm, the 75,1 x 61,0 cm tunnel also accommodates bulky seized items and parcels, scanned by a 160 kV generator, optionally at 180 kV. Built robustly, the system is designed for continuous use in correctional facilities and stadiums.
The system relies on current software integration. It is based on a stable Linux operating system and offers full ONVIF compatibility, which enables integration into existing video surveillance systems. Particularly noteworthy is the ability to automatically discriminate between materials as well as the option to use AI algorithms for detecting drugs and explosives.
The belt carries 80 kilograms, optionally 160 kilograms, at a belt height of 67,1 centimeters. The high-performance generators penetrate 38 millimeters of steel at 150 kV and 40 millimeters at 170 kV, so that even densely packed evidence crates remain readable.
VMI Spectrum 7560 in detail.
75 x 61 centimeters for bulky goods.
The large tunnel takes evidence crates, parcels and bulky items that a standard baggage scanner would have to reject, at a compact outer length of 208 centimeters.
Up to 40 millimeters of steel.
The high-performance generators with 160 or 180 kV penetrate up to 40 millimeters of steel and make even densely packed cargo readable.
AI algorithms optional.
Automatic material discrimination flags anything suspicious, and optionally AI algorithms add detection of drugs and explosives.
ONVIF in the security network.
The Linux-based system integrates via ONVIF into existing video surveillance and networks.
Rugged for correctional use.
Designed for continuous use in correctional facilities and stadiums, with 662 kilograms of stability in operation.
Applications, options, scope of delivery.
- Correctional facilities, also for bulky seized items
- Airports
- Train stations and subways
- Stadiums
- Courts
- Parcel services
- Automatic color coding (organic/inorganic/mixed materials)
- Automatic image storage (storage capacity over 200.000 images)
- Baggage counter
- Continuous scanning
- Zoom higher than 128x
- Edge enhancement (edge highlight)
- High-density alarm (high density alert)
- Image export in JPG, TIFF, BMP and VMI
- Self-diagnosis system
- +Artificial intelligence (AI) functions
- +Modular roller tables
- +Custom paint finish
- +UPS (uninterruptible power supply)
- +WiFi capability
- +Remote control console (remote workstation)
- +Lockable anti-theft console
- +ASTM standard test kit
