GarrettHand-held metal detector

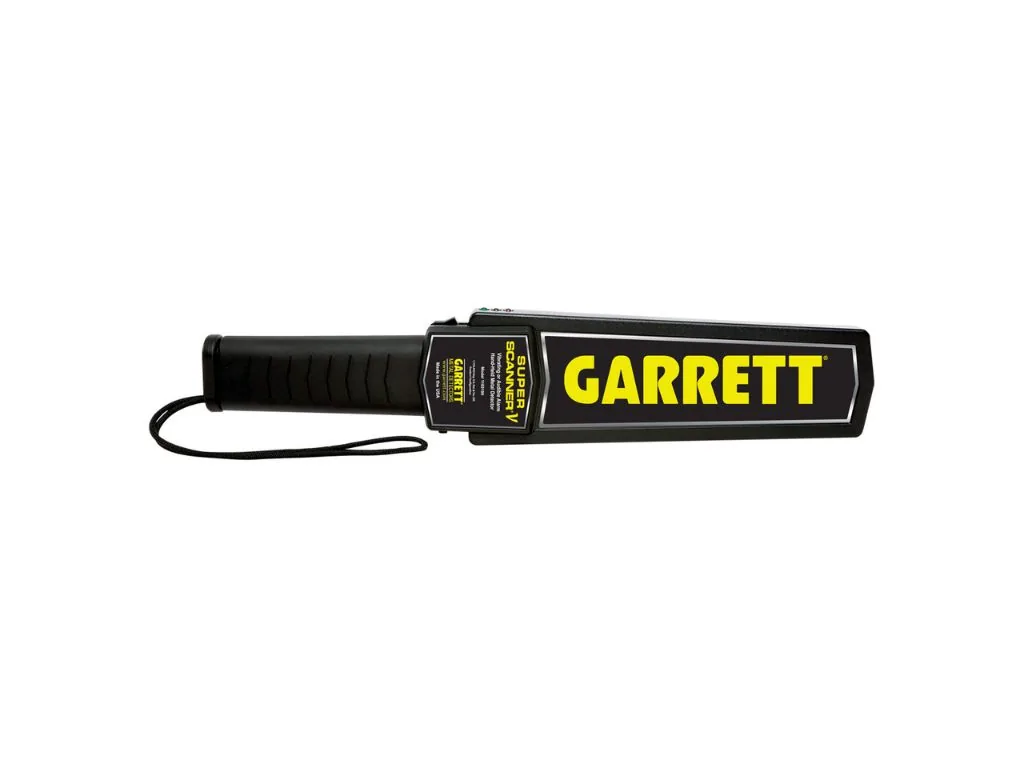

Garrett Super Scanner® V

The proven hand-held detector for the follow-up check after a walk-through detector alarm. Originally developed for the 1984 Olympic Games and continuously refined ever since, today in the V generation. Detects the smallest metal objects and exceeds the NIJ 0602.02 test standard.

European Garrett distributor Consulting, installation & maintenance
Hand-held metal detector

Price on request

Project prices depend on equipment, quantity and scope of delivery. We prepare an individual quote for you.

Custom quote within 24 hours
Advice from the official distributor
Installation and briefing on request
Maintenance, service and repair from a single source
Technical data

Specifications at a glance.

Alarm signalTone or silent vibration + LED light
Scan surface20,3 cm for fast, thorough scanning
HousingRobust, break-resistant ABS with weatherproof grip
Power supply9 V battery (up to 60 hours) or optional rechargeable set
Weight500 g
Dimensions (L x W x D)42,0 x 8,3 x 4,1 cm
Operating temperature−37 °C to +70 °C
Humidityup to 95 %, non-condensing
Default settingFully automatic self-calibration
Key features

The essentials at a glance.

The proven hand-held detector for the follow-up check after a walk-through detector alarm
High sensitivity, detects even the smallest metal objects
Large detection area for fast follow-up checks at entry
Robust, break-resistant housing for continuous operation
One control switch, automatic self-calibration
Tool-free battery change
Audible and visual signals
Product information

Garrett Super Scanner V for the follow-up check

The Garrett Super Scanner V is the proven hand-held detector for the follow-up check after a walk-through detector alarm, in service for over 20 years. One control switch, automatic self-calibration, no further adjustment. It detects even the smallest metal objects and signals audibly, visually or by vibration, depending on the setting. Robust, impact-resistant ABS housing to US military standard 810F, built for continuous operation.

The Super Scanner V calibrates itself automatically and monitors the battery, no further settings are needed. On a find, it signals audibly, visually or by vibration, depending on the setting. A press of the on switch is enough, after which it detects hidden metallic weapons down to the smallest knives and pistols. An elimination switch adjusts the sensitivity when nearby metal, such as rebar in the floor, causes interference.

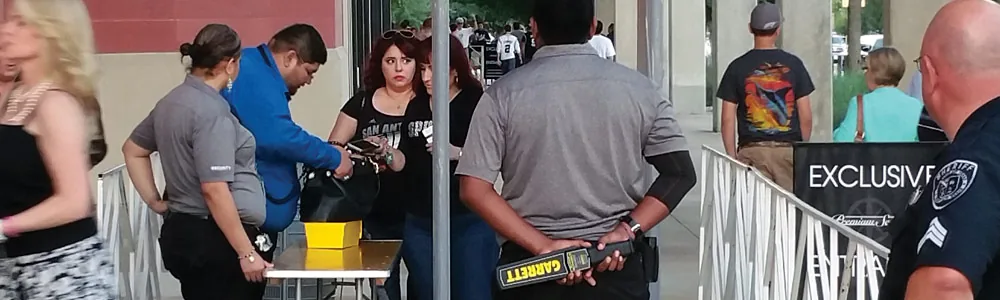

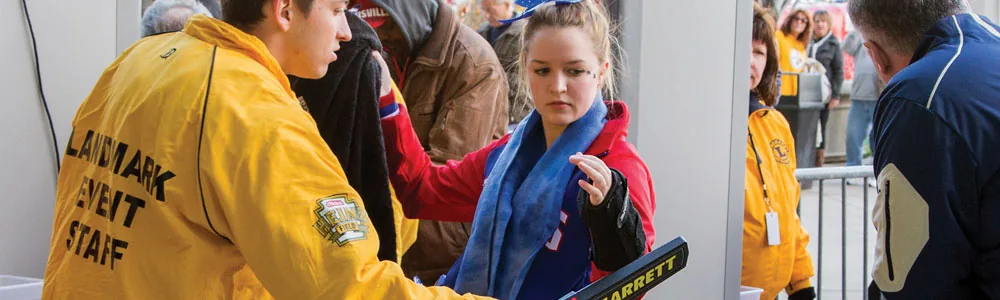

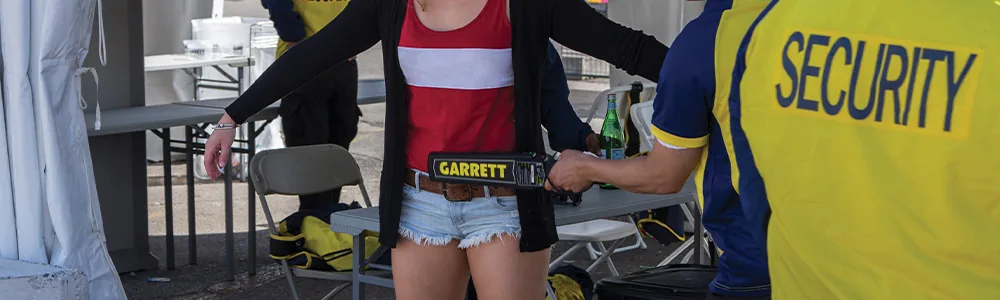

Among DTI customers, the Super Scanner V is part of the standard equipment for follow-up checks. It targets exactly what the walk-through detector reports, from the stadium to the court to the correctional facility.

Manufacturer

Garrett

DTI is the official distributor for Garrett.

More about Garrett
Features in detail

Garrett Super Scanner® V in detail.

Classic

The handheld for secondary screening.

Fully automatic self-calibration without a sensitivity setting, an elimination switch against ground metals and the 20,3-centimeter scan surface make secondary screening fast and thorough.

60 Std
Battery runtime
Robustness

Built for every shift.

The impact-resistant ABS housing with a reinforced coil compartment and weatherproof rubber grip works from minus 37 to plus 70 degrees Celsius.

500 g
Weight
Signal

Tone or silent vibration.

Audible alarm or silent vibration plus a red LED, depending on the screening situation.

Power

Tool-free change.

The 9-volt battery changes without tools, and an optional rechargeable battery kit powers the detector.

Display

Three colors, a clear situation.

Green for operation, orange for a battery change, red for an alarm, readable in any environment.

Configuration and delivery

Applications, options, scope of delivery.

Scope of delivery
  • Garrett Super Scanner V
  • 9V NiMH battery (if selected, then with 2x 9 volt NiMH rechargeable battery & charger)
  • Operating manual (German, English)
Standards & certifications
  • meets CE and international standard requirements for electromagnetic compatibility standards
  • meets U.S. military standard 810F (drop test) method 516.5, procedure II
